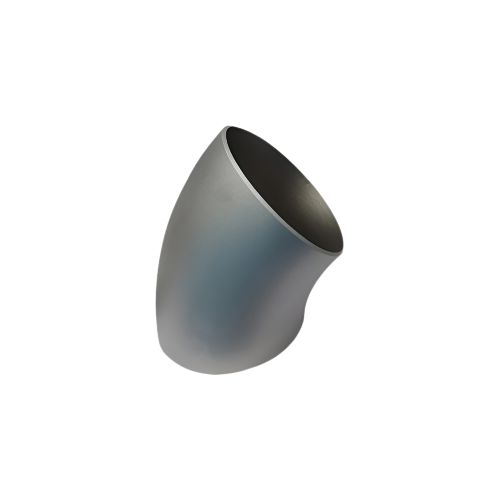

Titanium Pipe Fittings 45 Degree Exhaust Welded Elbow

Material

Titanium

Grade

Gr1 Gr2 Gr3 Gr4 Gr5 .etc

Standard

ANSI,ASME,DIN,JIS, GB/T

Size

DN15-DN1200

OEM

Available

Titanium Surface Finish

Sand blast, passivating

Technics

Forging,Welding, seamless

Type

Elbow

Packaging

Export Standard Wooden case, or can be customized

Application

Aerospace, petrochemical, electric power industry, shipbuilding industry, machinery industry, medicine and other

Nominal size
DN

The groove outside diameter
d

Center to face

45°elbow

90°elbow

I Series

II Series

Major radius

Major radius

Short radius

15

21.3

18

16

38

———

20

26.7

25

19

38

———

25

33.4

32

22

38

25

32

42.2

38

25

48

32

40

48.3

45

29

57

38

50

60.3

57

35

76

51

65

73.0

76

44

95

64

80

88.9

89

51

114

76

90

101.6

57

133

89

100

114.3

108

64

152

102

125

141.3

133

79

190

127

150

168.3

159

95

229

152

200

219.1

219

127

305

203

250

273.0

273

159

381

254

300

323.8

325

190

457

305

350

355.6

377

222

533

356

400

406.4

426

254

610

406

450

457

480

286

686

457

500

508

530

318

762

508

550

559

———

343

838

559

600

610

630

381

914

610

650

660

———

406

991

———

700

711

720

438

1 067

———

750

762

———

470

1 143

———

800

813

820

502

1 219

———

850

864

———

533

1 295

———

900

914

920

565

1 372

———

950

965

———

600

1 448

———

1 000

1 016

1 020

632

1 524

———

1 050

1 067

———

660

1 600

———

1 100

1 118

1 120

695

1 676

———

1 150

1 168

———

727

1 753

———

1 200

1 219

1 220

759

1 829

———
