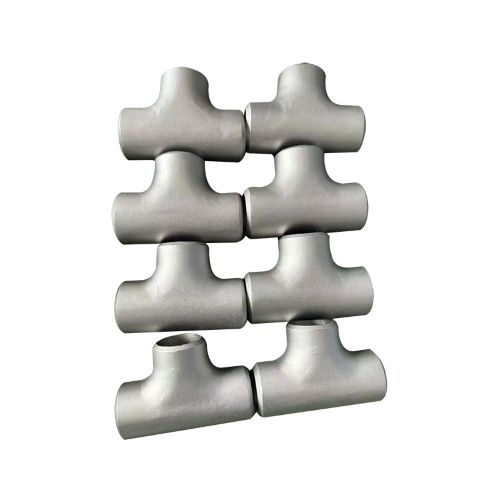

Titanium Equal Diameter Butt Weld Tee Pipe Fittings
Details:
|
Standard |
ASME,JIS,DIN,GB,GOST，ISO |
|
Material |
TA1，TA2，TA9,TA10.etc |
|
Size |
DN15-DN1200 |
|
OEM |
Available |
|
Titanium Surface Finish |
Sand blast |
|
Technics |
Weld |
|
Grade |
Gr1 Gr2 Gr3 Gr4 Gr5 .etc |
|
Type |
Tees, Cross |
|
Packaging |
Export Standard Wooden case, or can be customized |
|
Application |
Aerospace, petrochemical, electric power industry, shipbuilding industry, machinery industry, medical machinery and other |
Specification
|
Nominal size |
Outside diameter at bevel d |
45°Elbow |
||
|
I series |
ⅡSeries |
Tube pass C |
Exit M |
|
|
15 |
21.3 |
18 |
25 |
25 |
|
20 |
26.7 |
25 |
29 |
29 |
|
25 |
33.4 |
32 |
38 |
38 |
|
32 |
42.2 |
38 |
48 |
48 |
|
40 |
48.3 |
45 |
57 |
57 |
|
50 |
60.3 |
57 |
64 |
64 |
|
65 |
73.0 |
76 |
76 |
76 |
|
80 |
88.9 |
89 |
86 |
86 |
|
90 |
101.6 |
————— |
95 |
95 |
|
100 |
114.3 |
108 |
105 |
105 |
|
125 |
141.3 |
133 |
124 |
124 |
|
150 |
168.3 |
159 |
143 |
143 |
|
200 |
219.1 |
219 |
178 |
178 |
|
250 |
273.0 |
273 |
216 |
216 |
|
300 |
323.8 |
325 |
254 |
254 |
|
350 |
355.6 |
377 |
279 |
279 |
|
400 |
406. 4 |
426 |
305 |
305 |
|
450 |
457 |
480 |
343 |
343 |
|
500 |
508 |
530 |
381 |
381 |
|
550 |
559 |
———— |
419 |
419 |
|
600 |
610 |
630 |
432 |
432 |
|
… |
… |
… |
… |
… |
|
1 200 |
1 219 |
1 220 |
889 |
838 |
|
Suitable for the cross below DN600. Tees and cross above DN650, recommend exit size. |
||||
