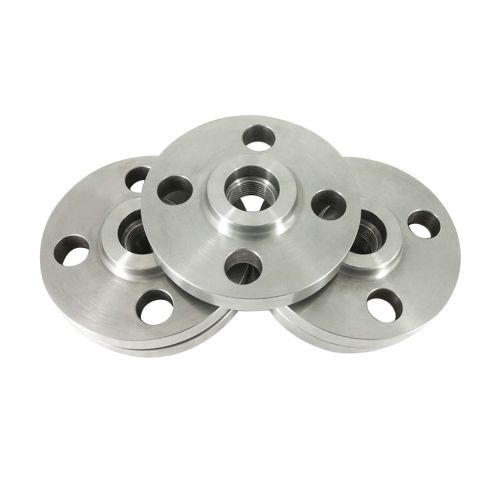

Threaded Titanium Flange
Details:
|
Standard |
ASME,JIS,DIN,GB,GOST |
|
Material |
Titanium Gr1, Gr2, Gr4, Grade9, Grade 11 etc. |
|
Size |
DN10-DN150 |
|
OEM |
Available |
|
Pressure |
PN6,PN10,PN16,PN25,PN40, |
|
Technics |
Forged |
|
Flange surface |
RF,FF |
|
Type |
Threaded flange |
|
Packaging |
Export Standard Wooden case, or can be customized |
|
Application |
Petroleum, chemical, shipbuilding, pharmaceutical, metallurgy, machinery, stamping elbow, food and other
|
Specification:
PN6
(mm)
|
Nominal size |
Outer diameter of steel pipe |
Connection size |
Flange thickness |
Flange neck |
Flange height |
Pipe thread specification |
||||||
|
Flange outside diameter |
Diameter of center circle of bolt hole |
Bolt hole diameter |
Number of bolt holes |
bolt |
||||||||
|
N |
R |
|||||||||||
|
10 |
17.2 |
75 |
50 |
11 |
4 |
M10 |
12 |
25 |
4 |
20 |
3/8 |
|
|
15 |
21.3 |
80 |
55 |
11 |
4 |
M10 |
12 |
30 |
4 |
20 |
1/2 |
|
|
20 |
26.9 |
90 |
65 |
11 |
4 |
M10 |
14 |
40 |
4 |
24 |
3/4 |
|
|
25 |
33.7 |
100 |
75 |
11 |
4 |
M10 |
14 |
50 |
4 |
24 |
1 |
|
|
32 |
42.4 |
120 |
90 |
14 |
4 |
M12 |
14 |
60 |
6 |
26 |
1-1/4 |
|
|
40 |
48.3 |
130 |
100 |
14 |
4 |
M12 |
14 |
70 |
6 |
26 |
1-1/2 |
|
|
50 |
60.3 |
140 |
110 |
14 |
4 |
M12 |
14 |
80 |
6 |
28 |
2 |
|
|
65 |
76.1 |
160 |
130 |
14 |
4 |
M12 |
14 |
100 |
6 |
32 |
2-1/2 |
|
|
80 |
88.9 |
190 |
150 |
18 |
4 |
M16 |
16 |
110 |
8 |
34 |
3 |
|
|
100 |
114.3 |
210 |
170 |
18 |
4 |
M16 |
16 |
130 |
8 |
40 |
4 |
|
|
125 |
169.7 |
240 |
200 |
18 |
8 |
M16 |
18 |
160 |
8 |
44 |
5 |
|
|
150 |
168.3 |
265 |
225 |
18 |
8 |
M16 |
18 |
185 |
10 |
44 |
6 |
|
